Study, Design and Construction Supervision of Water Transmission Line From Shirin-Dareh to Bojnord City and Water Treatment Plant :

Clinet:

Northern Khorasan Regional Water Authority(NKRWA), Ministry of Energy of Iran

Project details:

Water transmission line from Shirin Darreh Dam to Bojnord City (Bojnord is the capital of Northern Khorasan) through 48km-long steel and GRP pipelines with diameters of 900mm and 1000mm, construction of 4 pump stations and a treatment plant with a capacity of 950litres/sec and5 concrete reservoir with volume of 45,000m3. Some of project characteristics are:

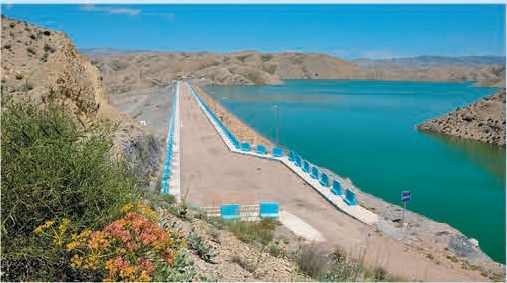

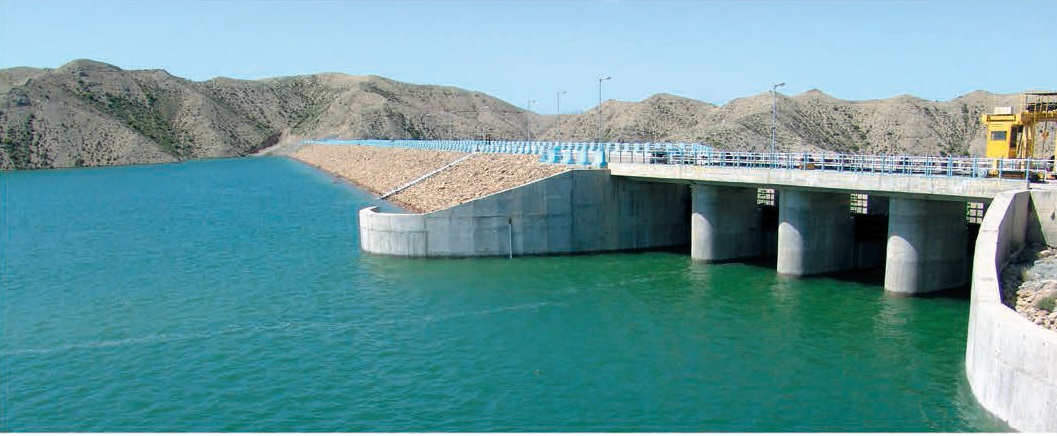

Water resource: Shirin Darreh Dam

Transfer Discharge: 950 lit/sec

Max. pressure of pipe line: 25 bars

Power consumption: 15 Megawatt

Water treatment plant location: End of Pipeline (5 km Bojnord)

Number of pump stations: 4withPumping head: 190 m and Pumping capacity: 950 lit/sec

Project objectives:

Study, Design and Construction Supervision of Water Transmission Line from Shirin-Dareh to Bojnord and Water Treatment Plants

Start Date:2003
Completion Date: 2020
Approx. Value of Services (in Current US$): 2,517,501
